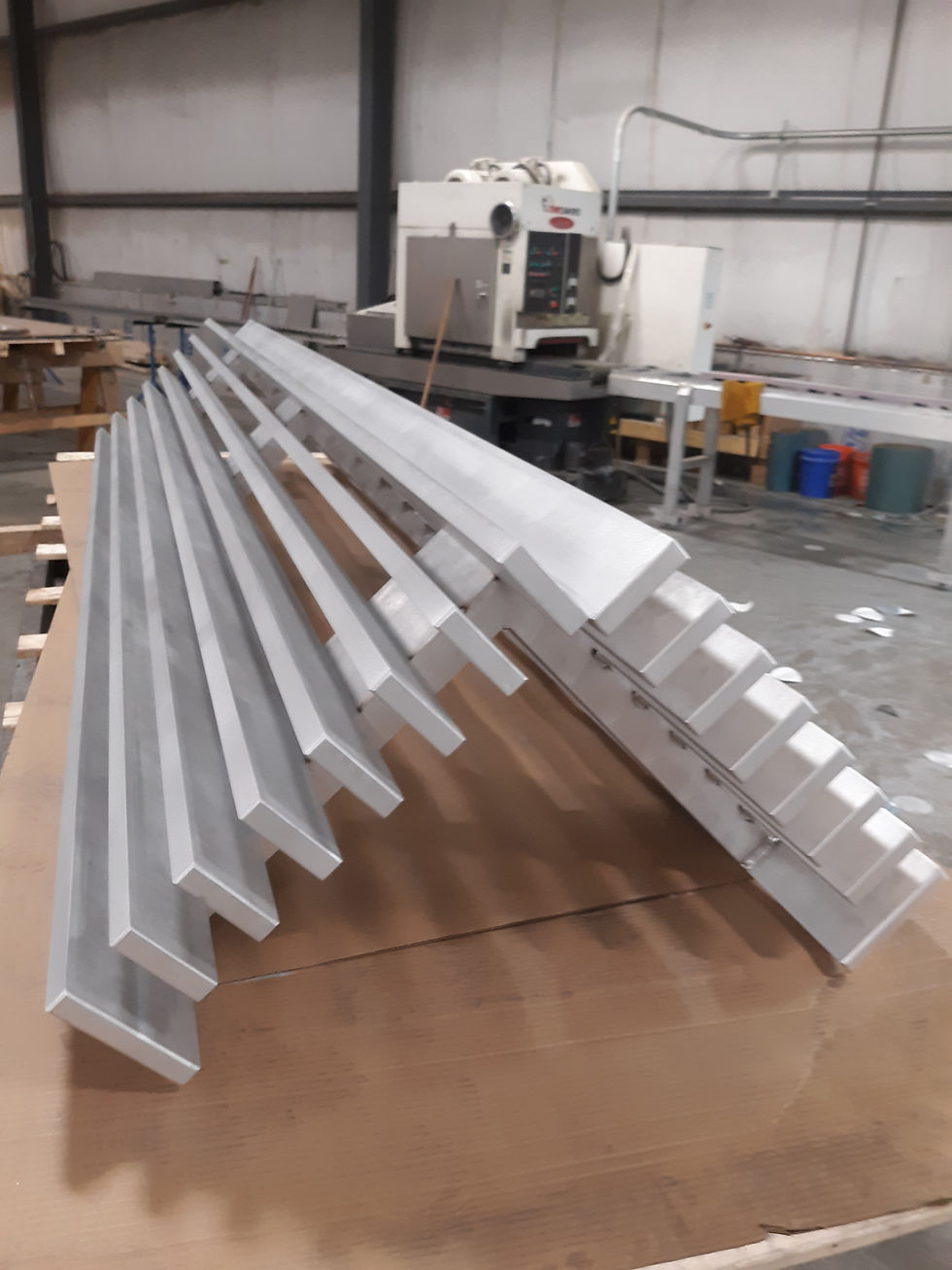

We specialize in Composite, Aluminum Plate, and Stainless-Steel Panels.

• Fabrication in dry joint and wet joint systems

• Back pans and shadow box corners have many options to choose from including: weld & ground, tack weld, silicone seal, open corners.

​

Back pans are metal sheets or pans that are used in curtain wall systems to provide insulation, fire safety, and moisture and thermal protection:

• Location

  Back pans are attached to the curtain wall frame behind opaque areas, such as spandrel glass or metal panels.

• Material

  Back pans are usually made from galvanized steel.

• Insulation

  In colder climates, insulation is installed between the back pan and the spandrel glass or metal shadow box.

• Benefits

  Back pans provide thermal and moisture protection, are fire retardant, and sound-absorbing.

Offers steel backpan systems that can be easily formed to meet the opening size and specifications. Galvanized Steel Back Pan. Insulated Back Pans that can reduce labor and time on-site.

Application

Working exclusively to supply Glass and Glazing trades, backpans are adhered and sealed to the curtain wall frame behind opaque glazing areas.

Product Features

• Available with custom flanges

• Available in oversized dimensions

• Available with customized features including tapered or angled pans

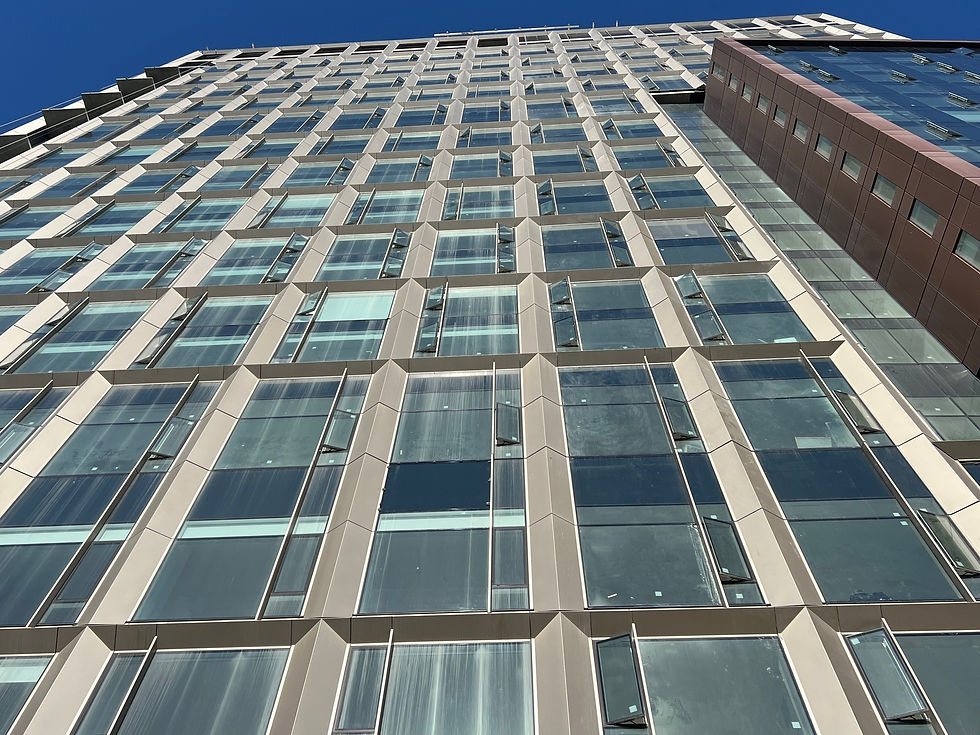

Curtainwall Systems

Unitized Curtain Wall Systems

Unitized systems are considered to be superior from lower on-site labour costs derived from the units being manufactured in a climate-controlled factory environment and shipped to the site in modular units.

Stick Built Curtain Wall

Stick-built systems can be more economical especially if the building facades require lower volumes. In addition, the lead time is much shorter. The parts required will be ready which will then allow for earlier installations. However, the installation will take longer because fabrication and glazing will be done on site.
